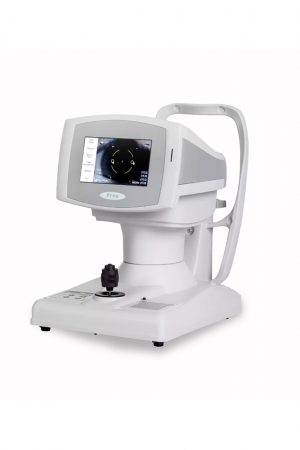

TONOMÈTRE NON-CONTACT MX-2022
Le tonomètre NON-CONTACT MX-2022 est un appareil de diagnostic moderne doté d’un système autofocus et auto tracking garantissant des niveaux optimaux de confort du patient lors d’une mesure non invasive de la pression intraoculaire et ainsi, de gagner du temps.
Spécifications techniques
Détail produit
Spécifications techniques
| MX-2022 TECHNICAL SPECIFICATION | |
|---|---|
| IOP measurement range | 0 – 60mmHg (0 – 80 hPa) |
| Resolution | 0.5 mmHg |
| Printer | Built-in, thermal Print width 57 mm Printing papier role diameter 35 mm |

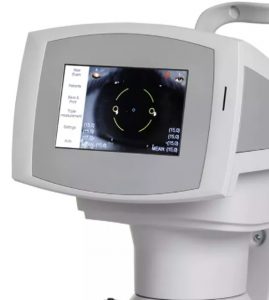

| Display | Size: 7″ (165 x 104mm) Color TFT LCD with capacitive touch screen Resolution: 800 x 480 |
| Storage devices | SD card SD WIRELESS LAN support Internal flash |
| Internal memory | Capacity: up to 4000 patients x 100 exams x 3 measurements (for each eye) Data format for exporting: XML |
| Chinrest | Electrically regulated (up/ down) |
| Chin rest travel distance | 69 mm (up/ down) |
| Measurement head travel distance | 85 mm (X axis) 40 mm (Y axis) 50mm (Z axis) |
| Dimensions | Height: 460 mm Width: 300 mm Depth: 480 mm |
| Weight | 18kg |
| Power Supply | External, medical power supply adapter INPUT: 100-240V ~1,5A OUTPUT: 12V ⎓5A |
| Power consumption | Max 45VA |
